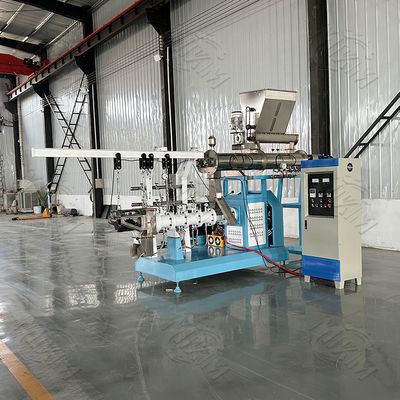

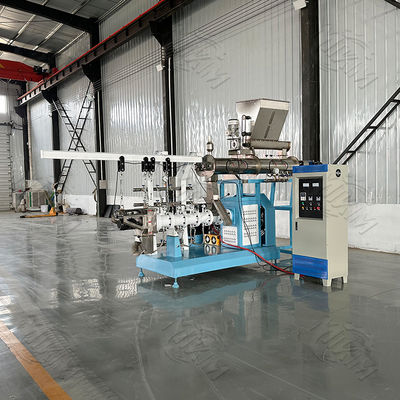

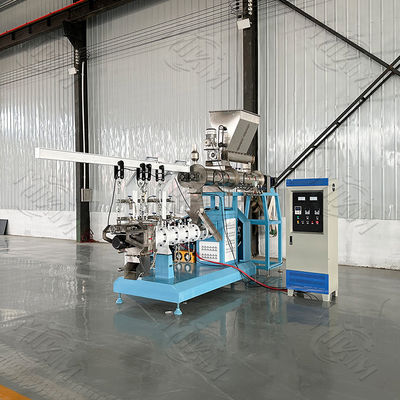

Low Temperature Pet Food & Fish Feed Extruder Machine Baking Processing with Core PLC Motor Componen

Hình ảnh lớn : Low Temperature Pet Food & Fish Feed Extruder Machine Baking Processing with Core PLC Motor Componen

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	MIKIM
Chứng nhận:	CE
Số mô hình:	DGP-100,DGP-120,DGP-135,DGP-160,DGP-200

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 bộ
Giá bán:	$1500.00 - 9500.00/ Set
chi tiết đóng gói:	đóng gói bằng gói xuất khẩu bằng gỗ hoặc tải bằng container
Thời gian giao hàng:	7-10 ngày làm việc
Điều khoản thanh toán:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Khả năng cung cấp:	300 bộ mỗi tháng

Tiếp xúc

Low Temperature Pet Food & Fish Feed Extruder Machine Baking Processing with Core PLC Motor Componen

Sự miêu tả

Làm nổi bật:

low temperature pet food extruder

fish feed extruder machine

PLC motor pet feed extruder

Low Temperature Pet Food & Fish Feed Extruder Machine Baking Processing with Core PLC Motor Component

Fully Automated Fish Feed Production Line

Raw Material Cleaning: Receiving bulk corn and soybean meal raw materials; the cleaning process refers to all operating units sending corn and soybean meal, inspected by the raw material inspector, into silos. During this process, impurities in the raw materials are first removed by a cleaning device, and then conveyed to the silos according to plan via receiving and demagnetizing equipment. The production line equipment includes receiving equipment, conveying equipment, primary screening, and magnetic separation equipment. For bagged raw materials, loading and unloading personnel unload the raw materials inspected by the raw material inspector and neatly store them in the warehouse.
Batching Process: The batching process refers to the weighing and feeding of raw materials into the batching silos from the feeders below each batching silo according to the formula requirements. Each raw material, after being weighed by the batching scale, is conveyed to the powder storage silo. After being weighed from the silo, the raw materials are fed into the powder silo. Small quantities of materials and premixes are weighed manually and then added to the silo for mixing. The quality of the batching process directly affects the accuracy of the product batch.
Crushing Process: The crushing process involves feeding the raw materials to be crushed from the silo into the crusher for grinding, then conveying them back to the silo for mixing before final use. The purpose of this process is to control the particle size of the material. The design efficiency of the crusher in this process determines the capacity of the equipment and is also the most energy-intensive process in the production of powdered materials.
Mixing Process: During the mixing process, the various ground raw materials are discharged from the mixing chamber into the mixer. Oil is added to the raw materials in the mixer as needed through a liquid addition system to ensure uniform mixing of all components, achieving the required mixing effect and uniformity. The material discharged from the mixer is the finished product and is directly sent to the finished product packaging process for packaging and transportation.
Granulation Process: After magnetic separation and tempering, the mixed materials are fed from the granulation silo into the pressing chamber of the granulator, where they are pressed into granules. These granules are then cooled in a cooling tower and sieved to obtain standard pellets. The magnetic separation equipment should be cleaned regularly to prevent iron impurities from damaging the granulator.
Finished Product Packaging Process: After being weighed on a packaging scale from the finished product warehouse, the feed is placed into packaging bags. Packaging personnel then affix labels and seal the bags before transporting them back to the warehouse for storage.

Product Parameters

Parameter	DGP-100	DGP-120	DGP-135	DGP-160	DGP-200
Capacity(kg/h)	500	600-700	800-900	1000-1200	1800-2000
Main motor(kw)	37	55	75	90	132
Feeder motor(kw)	1.5	1.5	1.5	2.2	3
Cutter motor(kw)	1.5	1.5	2.2	2.2	3
Screw diameter(mm)	φ100	φ120	φ135	φ160	φ200
Machine size(m)	2 * 2.8 * 1.2	2.2 * 2.9 * 1.2	2.2 * 3.1 * 1.37	2.3 * 3.15 * 1.38	2.35 * 3.45 * 1.65
Weight(kg)	1500	1800	2000	2500	3200
